Technical Specification
| Max Static Load | : 3000 kg |
| Load Capacity | : As per Table |
| Gear Ratio | : 37:1 |
| Brake | : 110/220 DC |
| Traction Sheave | : 320/410/510/530 mm |
| Rope Size | : 8/10/13 mm |
| Oil Capacity | : 3 Ltr. |
| Weight Of Unit | : 220 Kg* |
| (with BedPlate) | |
*Weight of the machine varies according to selection of sheave, motor etc.
Subject to change without notice
Subject to change without notice
Technical Specification
Machine Features
- Most compact unit with integral motor & Brake in India
- Prefect adaptability to all instillation requirements including MRL jobs.
- Traction sheaves with undercut grove and controlled hardness for increased wear resistance.
- Dynamically balanced high-speed parts for smooth operation.
- Centrifugally cast gear for longer life.
- Factory load tested and check for extreme condition.
- Worms and gears hardened and ground for smooth operation.
- All parts manufactured to precision and interchangeability.

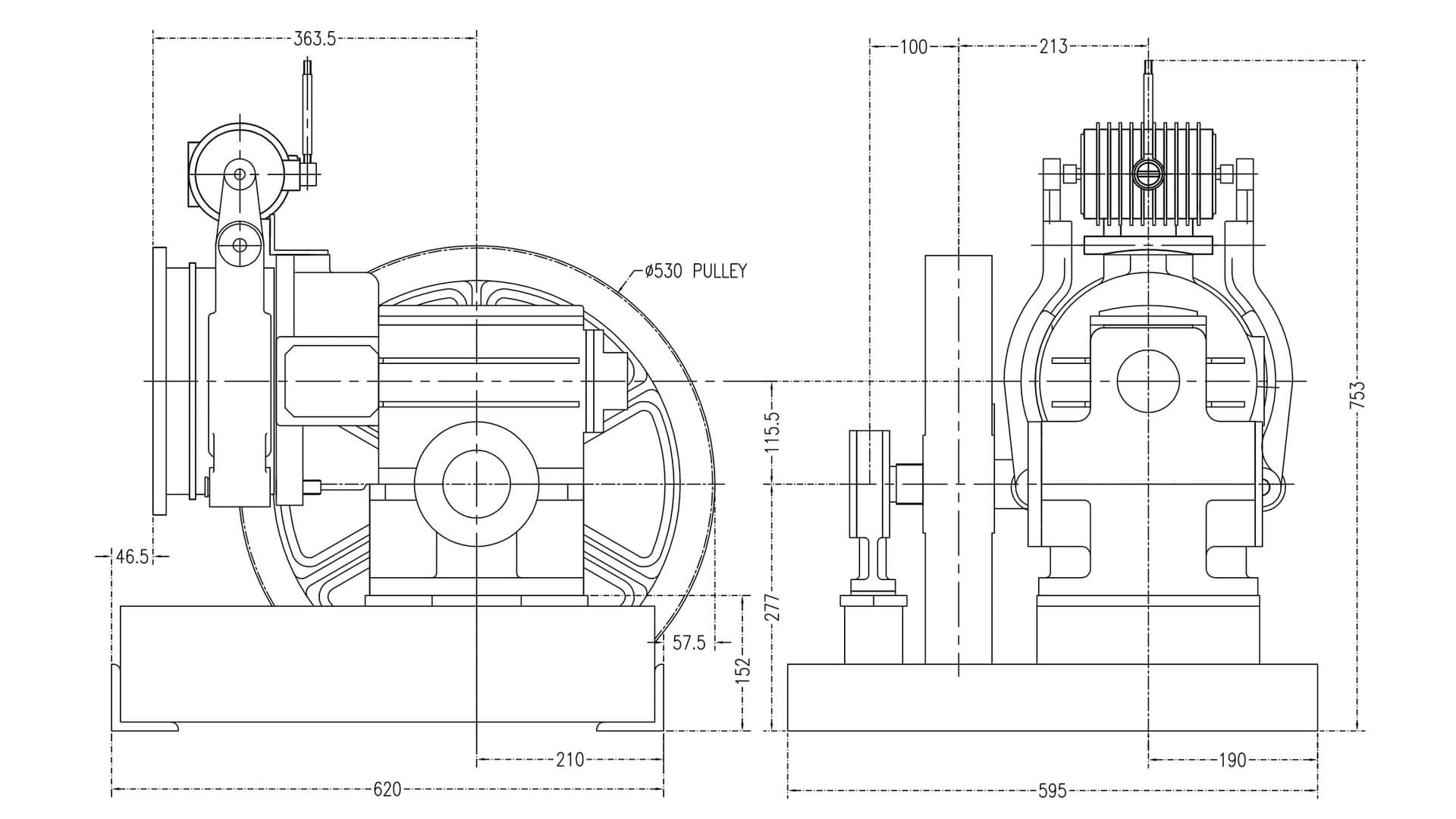

Technical Drawings
| Machine | Static Load (Kg) | Load | Speed (m/s) | Sheave | Roping | Motor | Travel Height (m) | ||||||
| No. of Passenger | Kg | Dia (mm) | Rope No. | Rope Dia (mm) | RPM | KW | HP | Pole | |||||
| AT-115 | 3000 | 6 | 408 | 0.72 | 530 | 3 | 13 | 1:1 | 960 | 3.7 | 5 | 6 | 30 |
| Kindly contact us for various load and speed combinations Subject to change without notice |
